Uncooled LWIR Thermal Imaging Module

Short Description:

LWIR thermal imaging module are widely used for all different kind thermal cameras for observation, drone, industry monitoring, search and rescue. WTDS Optics provide most popular model with different thermal core with lenses.

Send email to us

Product Detail

Product Tags

Feature

● Power Supply: 12VDC (3~18VDC)

● NETD: <40mk for standard, <30mk for optional

● Output (640x512): Analog(PAL), USB, LVDS, LVCOMS, Ethernet(h264), BT656, BT1120, Cameralink

● Output(1280x1024): LVDS, LVCOMS, Ethernet(h264), BT1120, Cameralink, HDMI, SDI

● Other Function: Auto focus, Sunshine protection, High voltage protection

● Protection level: IP67 (Front panel)

Model and Technical Specification

Model	Optical	IR core	FOV
TM5P8A	5.8mm, f1.0, Athermalized	VOx, 640×512, 12µm	67°×55.8°
TM13A	13mm, f1.0, Athermalized	VOx, 1280×1024, 12µm	61.1°×50.6°
TM19A TM19AH	19mm, f1.0, Athermalized	VOx, 640×512, 12µm VOx, 1280×1024, 12µm	22.8°×18.4° 44°×35.8°
TM35A TM35AH	35mm, f1.0, Athermalized	VOx, 640×512, 12µm VOx, 1280×1024, 12µm	12.5°×10° 24.8°×19.9°
TM75E	75mm, f1.0, Motorized	VOx, 640×512, 12µm	5.8°×4.7°
TM100E	100mm, f1.2, Motorized	VOx, 640×512, 12µm	4.4°×3.5°
TM150E	150mm, f1.2, Motorized	VOx, 640×512, 12µm	2.9°×2.3°
TM25/75 TM25/75H	25~75mm, 1.2	VOx, 640×512, 12µm VOx, 1280×1024, 12µm	5.9°×4.7°~17.5°× 14° 11.7°×9.4°~17.5°× 14°
TM20/100 TM20/100H	20~100mm, f1.2	VOx, 640×512, 12µm VOx, 1280×1024, 12µm	4.4°×3.5°~21.7°× 17.5° 8.8°×7°~42°×34°
TM25/150	25~150mm, 1.4	VOx, 640×512, 12µm	2.9°×2.4°~17.5°× 14°
TM30/150 TM30/150H	30~150mm, 1.2	VOx, 640×512, 12µm VOx, 1280×1024, 12µm	2.9°×2.4°~14.6°× 11.7° 5.9°×4.7°~28.7°×23.1°
TM30/180	30~180mm, f1.4	VOx, 640×512, 12µm	2.4°×2°~14.6°× 11.7°
TM25/225 TM25/225H	25~225mm, f1.2~1.5	VOx, 640×512, 12µm VOx, 1280×1024, 12µm	1.9°×1.5°~17.5°× 14° 3.9°×3.1°~42°×34.1°

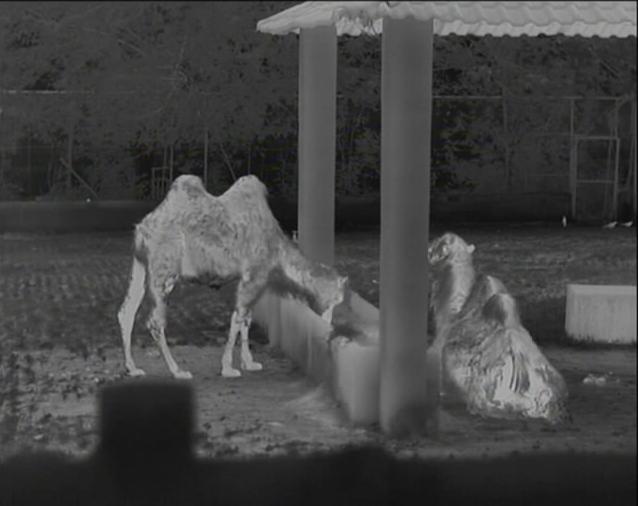

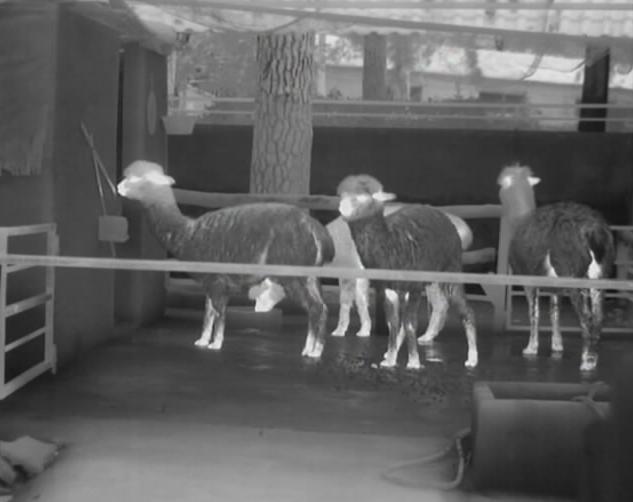

Performance

WTDS Optics provides various options of thermal core to build module, include most popular brand and models on the market. And we will also recommend the most cost -effective thermal core according to customer application.

In addition, we also offers various options of thermal lenses, include athermalized lens, fixed lens, manual lens, fish eyes lens, continuous zoom lens, dual FOV lens. Customers can flexibly configure the module according to their requirement. Customization is supported to fulfill any special requirement of different application.
