Hawk-F Counter Sniper Binocular

Short Description:

Hawk-F is an Counter-sniper detection equipment developed based on the principle of “cat’s eye effect”, which integrates detection, interference and visual reconnaissance. It can launch invisible laser to scan the target area, and will receive laser echo signal when there are gun sight（or other photoelectric equipment) in target area. So it also called “Lens finder”.

Send email to us

Product Detail

Product Tags

Feature

● "Cat's eye effect" Technology

●Laser Scanner Maximum scan range up to 4km.

● Laser Jammer Power Density up to 0.5mW/cm2, Effective distance up to 1km.

● Laser Range Finder up to 1.5km

● Military standard design, IP67 water proof

Technical Specification

Model	Hawk-F
Laser Scanner
Laser Wavelength	≥800nm
FOV	6°×4.5°
Scanner Range	Daytime: ≥1200m (20mm≤Objective Lens≤50mm)； ≥2500m (Objective Lens≥50mm); Night: ≥1800m (20mm≤Objective Lens≤50mm); ≥4000m (Objective Lens≥50mm)；
Discovery Probability (Automatic)	≥90%
Laser Jammer
Laser Power Density	0.5mW/cm2～1.25mW/cm2
Spot Size	≥50cm（50m (Not included) ~ 1000m distance range）
Safety Distance	≤50m (Does not emit interference laser for targets within 50m)
Laser Range Finder
Range	50~1500m(For human1.8x0.5m)
Low Light Camera
Field of View	≥7︒× 5︒
Observation Distance	Daytime: ≥1000m(Human) Night: ≥350m(Human)
Diopter	-5SD～+2SD
Other Feature
Power Supply	Battery : 18650 x 12pcs Continuous working hours : ≥ 4h
Weight (Without battery)	<1.7kg
Working Temperature	-40°C ~ 60°C
Protection Level	IP67

Performance

Hawk-F is an Counter-sniper equipment developed based on the principle of "cat's eye effect". It also called “Lens finder”. The camera build in Laser scanner, Laser Jammer, Laser range find, low light camera.

Hawk-F integrate high-performance low-light camera, which can directly observe the surrounding environment under night conditions, To make it to be a day and night handheld observation device.

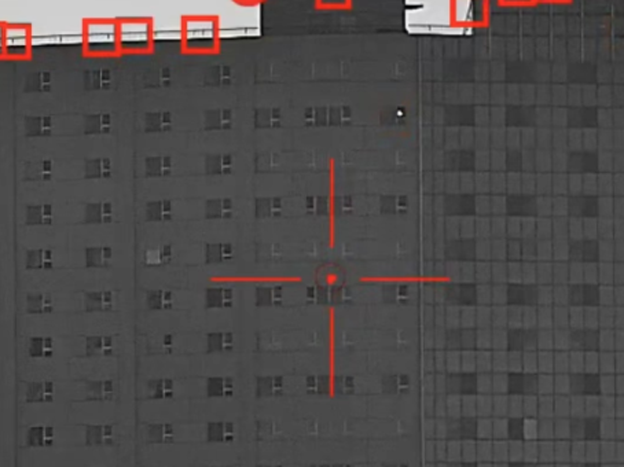

The laser scanner can scan the area in the screen up to 4km. The point will blink when there is sniper (scope, sight....). Then the laser jammer will manually or automatically launch a strong laser to jam after detection of suspected sniper target. The laser will making the enemy temporarily incapable of attacking.
