Cooled MWIR Thermal Imaging Module

Short Description:

MWIR thermal imaging module are widely used for border monitoring, observation, gas detection, marine . WTDS Optics provide most popular model with different thermal core with lenses.

Send email to us

Product Detail

Product Tags

Feature

● Power Supply: 24VDC (18~32VDC)

● Fast Auto Focus

● Automatic Bad Pixel Correction

● Various Video Output for Optional

Model and Technical Specification

Model	Optical	Cooled Detector	FOV
CMW15/300 CMW15/300P	15~300mm, f4	MCT/, 640×512, 15µm, MTTF 6500h InSb/, 640×512, 15µm, MTTF10000h	1.83°×1.46°~35.5°× 28.7°
CMW40/600 CMW40/600P	40~600mm, f4	MCT/, 640×512, 15µm, MTTF 6500h InSb/, 640×512, 15µm, MTTF10000h	0.91°×0.73°~13.7°×10.9°
CMW40/800 CMW40/800P	40~800mm, f4	MCT/, 640×512, 15µm, MTTF 6500h InSb/, 640×512, 15µm, MTTF10000h	0.68°×0.55°~13.7°×10.9°
CMW40/1100 CMW40/1100P	40~1100mm, f5.5	MCT/, 640×512, 15µm, MTTF 6500h InSb/, 640×512, 15µm, MTTF10000h	0.5°×0.4°~13.7°×10.9°

Video board	Analog Video Output	Digital Video Output	Protocol
002	PAL, NTSC, CCIR, CVBS	Cameralink	RS422
003	PAL, NTSC, CCIR, CVBS	SDI	RS422
004	PAL, NTSC, CCIR, CVBS	Ethernet (H.264)	RS422
005	PAL, NTSC, CCIR, CVBS	GigE	RS422/ GenlCam

Performance

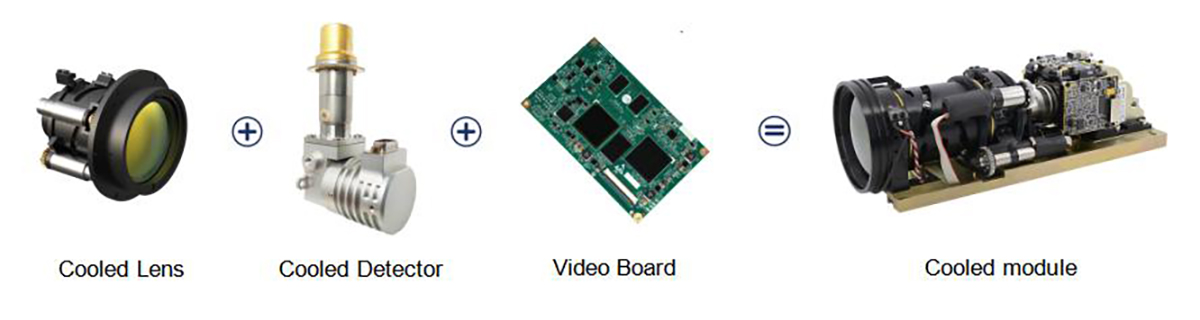

WTDS Optics provides cooled MWIR thermal module, with various options of cooled thermal cores (MCT & InSb) in different level, made in China or import from Europe/US.

And we also provide various cooled thermal lenses, include fixed lens, continuous zoom lens, dual FOV lens, tri FOV lens.

You can find almost all format of videos and protocols in the world in WTDS. Include SDI, Ethernet, GigE, Cameralink. Customization is available for special requirement.

Customization of housing or pedestal is supported for different mechanical requirement.

WTDS Optics has 12 years experience on MWIR module debug and integration. You can get most professional service and solution from us.
